The Lumineux Woodhead 3W LED emergency downlight is an ideal emergency downlight solution for a wide variety of commercial, retail, light-industrial and industrial applications. A high output 3W SMD LED array ensures maximum brightness and the high capacity battery pack ensures reliabe 3hr emergency output.
The wide angle open-optic makes this an ideal solution for open area emergency downlighting. The small cut-out size and compact design makes the fitting very discrete once installed. In addition, a compact and small cross-section battery pack and long cable leads allows for easier access to ceiling voids through cut-outs etc.
A high quality LED driver ensures longevity and performance which is essential for emergency fittings such as these, and this 3W LED emergency downlight is covered by a 3 year manufacturer warranty and a 2 year manufacturer warranty on the battery for added peace of mind.
This fitting is available in standard and self-test models.
SPECIFICATION:
| Housing colour | White RAL 9016 |
| Body material | Aluminium |
| IP Rating | 20 |
| Diffuser Material | Polycarbonate |
| Fixture Luminous Flux +/-10% (Lm) | 152 |
| CRI Ra | 70 |
| Beam Angle (degrees) | 110 |
| Wattage +/-10% (W) | 3 |

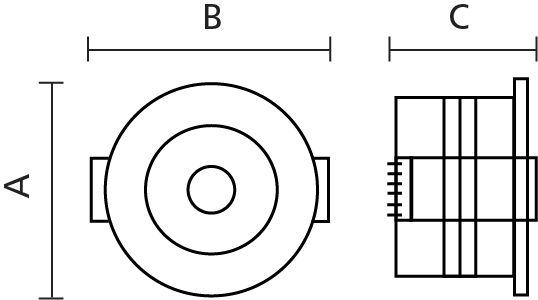

| Nominal Product Length (mm) | 40 Downlight, 150 Driver, 142 Battery |
| Nominal Product Width (mm) | 40 Downlight, 30 Driver, 85 Battery |
| Nominal Product Height (mm) | 21 Downlight, 29 Driver, 27 Battery |
| Weight (kg) | 0.3 |
| Warranty (Years) | 5 |
| Colour Temperature (K) | 6000 |
PRODUCT CODES:
421307: Lumineux Woodhead LED Emergency Downlight Open Area 3W 6000K White
421308: Lumineux Woodhead LED Emergency Downlight Open Area Self-Test 3W 6000K White
Lumineux Woodhead 3W open area LED emergency downlight
- Wattage: 3W
- Colour temperature: 6000K
- Lens type: Open wide angle
- Emergency duration: 3 hours
- Emergency light output: 140 lumens
- Recess mounted (Ceiling or wall)
- Warranty: 3 Years (Unit) / 2 Years (Battery)
- Standard and self-test versions available
