Collingwood H2 Lite CSP 4CCT 4W-6W LED fire-rated downlight DLT551500B10 - 10pk

Available in 10pk, 20pk, 40pk and 80pk multipack options for even bigger savings.

The Collingwood H2 Lite CSP 4CCT 4W–6W LED fire-rated downlight DLT551500B is designed as a superior, fit-and-forget lighting solution backed by a 7-year manufacturer warranty for long-term peace of mind. Its convenient, user-friendly design allows the colour temperature to be adjusted simply by twisting off the bezel and using the front-facing switch. With the addition of a warm 2200K setting, the downlight gives you the ability to create a cosy, atmospheric environment. Large piano-key terminals make loop-in/loop-out wiring straightforward and efficient.

This model offers a range of features and benefits that support quick installation and reliable performance. The light is colour-switchable between 2200K, 2700K, 3000K and 4000K for maximum flexibility. An innovative smooth-glide clip ensures easy, hassle-free installation, while the front switches allow all options to be selected on site. A new lever terminal block with integrated testing ports enhances speed and simplicity during setup.

A two-part connector enables first-fix wiring while the luminaire is detached, allowing loop-in/loop-out wiring and quick maintenance if disconnection or reconnection is required. Collingwood has confirmed full compatibility between the H2 Lite CSP and the Click Flow CT100 series, ensuring no issues during installation. The unit is TRIAC mains dimmable and includes the 2200K “Ember Light” mode to reduce blue light and create a warm, fire-like ambience. It is also compatible with H2 twist-and-lock bezels.

When used with a converter plate, the IP rating remains unchanged, though the product will no longer be fire-rated. The wattage is switchable between 4W and 6W, delivering an efficiency of up to 145 lm/W.

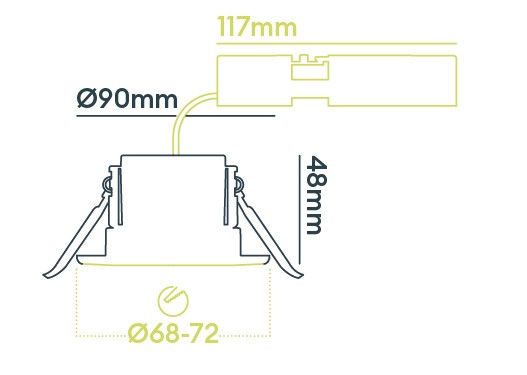

Cut out diameter: 68m - 72mm
Overall diameter: 90mm

PRODUCT FEATURES:
10pk, 20pk, 40pk and 80pk multipack options for even bigger savings
Colour switchable between 2200K, 2700K, 3000K and 4000K
Innovative smooth glide clip design for smooth installation
Front switches allow you to choose options at installation
New lever terminal block complete with testing ports for speed and ease of installation LENNEL
2-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/reconnection be required
Collingwood have tested the H2 Lite CSP and confirmed they work together with the Click Flow CT100 series without compatibility issues.
TRIAC Mains dimmable
Select 2200K ‘Ember Light’ to minimise blue light and create a cosy fireplace environment
Compatible with H2 Twist and lock bezels
When using a converter plate, the IP rating is not affected; however, the product is no longer fire-rated.
Wattage Switchable between 4W & 6W, delivering up to 145lmW
Lumens: 460-780lm | Wattage: 4-6W
55 degree beam angle
IP65 (from below) IP20 (from above)
Insulation Coverable (Rolled and blown insulation)
7 year manufacturer warranty

PRODUCT CODE: DLT551500B10
